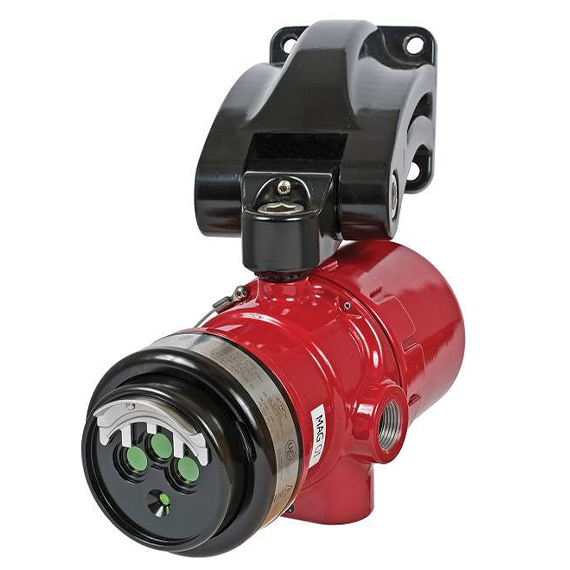

Det-Tronics X3301
Det-Tronics X3301
The X3301 Multispectrum IR Flame Detector uses signal processing algorithms, supported by an embedded 32-bit microprocessor, to provide continuous protection in the presence of false alarm sources where hydrocarbon fires and infrared radiation may occur.
It is suitable for indoor and outdoor applications that require the highest level of false alarm rejection and fire detection performance. The detector is available in aluminum (painted) or stainless steel (316/CF8M cast) for installation in the harshest environments.
Det-Tronics X3301

Specs

Operating Voltage
24 Vdc nominal (18 Vdc minimum, 30 Vdc maximum).
Power Consumption
4 watts minimum (without heater), 17 watts at 30 Vdc
Spectral Sensitivity Range
4 - 5 microns
Enclosure Material
Copper-free aluminum (painted) or stainless steel(316/CF8M Cast).

Features

  • Complies with FM 3260
  • EN54 certified
  • Certified SIL 2 capable
  • ATEX Directive compliant
  • Certified performance to multiple fuel types and fire sizes
  • EQP models available
  • Long detection range to carbonaceous fires
  • HART models available
  • FDT/DTM capable
  • Multiple sensitivity levels
  • Maximum false alarm rejection
  • Calibrated automatic optical integrity
  • Reliable flame detection with modulated IR background
  • Microprocessor controlled heated optics
  • Third-party approved options for detector verification include
  • Magnetic Optical Integrity and Manual Optical Integrity tests
  • Tri-color LED indicates detector status and field-of-view (FOV)
  • RFI and EMC Directive compliant
  • Event logging with time and date stamp
  • Integral wiring compartment for ease of installation
  • Operates under adverse weather conditions and in dirty environments
