Custom Panel Design & Manufacturing Custom Panel Design & Manufacturing
Custom Panels
Designed for You

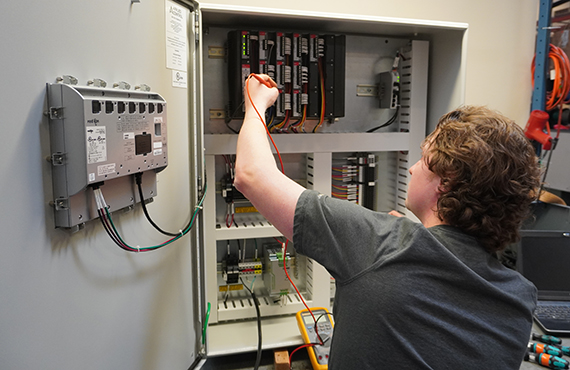

Custom Panels

In Applied Control’s custom manufacturing workshop, we realize that no two projects are identical. Our design engineers work in conjunction with you to produce designs that lower installation time, eliminate start-up issues, and decrease the total cost of installation. Applied Control’s UL-508A and UL-NNNY Certified Shop can provide custom panel design & layout, custom engineering, installation/wiring of equipment, complete Quality Control (QC) & Factory Acceptance Test (FAT), and custom preparation/packaging for shipment.

In-House Drafting
Drawings & Designs

In-House Drafting

Clear and accurate drawings are essential for both the initial design and long-term maintainability of industrial control panels. Applied Control’s in-house drafting expertise ensures quality drawings that accurately document your unique application. From industrial control panels to network diagrams to valve assembly dimensional drawings, our team is ready to help document your next project.

Our drafting approach is modular, which allows for rapid response to design changes throughout the project. We design our panels with field installation in mind, leaving plenty of room for field wiring and circuit separation.

Drafting Highlights:

  • Loop Drawings
  • I/O Points Documented in Drawings
  • UL 508A/NNNY Compliant Drawings for Listed Panels



The Applied Difference

Pro-Level Training
Pro-Level Training
Applied Control design engineers are trained on DeltaV, ROC, ControlWave, FloBoss, FB1000, FB2000, and FB3000 product lines
Designed for YOU
Designed for YOU
We work closely with our customers to insure all of the design requirements are met while making the panel easy and fast to install in the field
Documentation Provided
Documentation Provided
We generate CAD drawings of the assembly and include a copy in the completed panel
Check, Check, and Check!
Check, Check, and Check!
All panels must pass a 100% point to point QC test to insure proper wiring
Special Requests? No Problem!
Special Requests? No Problem!
We can install customer-specific configuration files or user programs upon request
Equipment in Stock
Equipment in Stock
Applied Control keeps a full range of complementary equipment on the shelf to complete your DeltaV, FloBoss, ROC, or ControlWave installation
Get in touch with an expert, request a quote, or send us a note about your next project.
Talk to one of our experts
303-799-9300
+
Talk to an expert

Our Certifications

UL 508A Industrial Control Panel Fabricator
UL 508A Industrial Control Panel Fabricator
UL NNNY Control Panels and Assemblies for Use in Hazardous Locations
UL NNNY Control Panels and Assemblies for Use in Hazardous Locations

Industries Supported

Oil and Gas
Oil and Gas

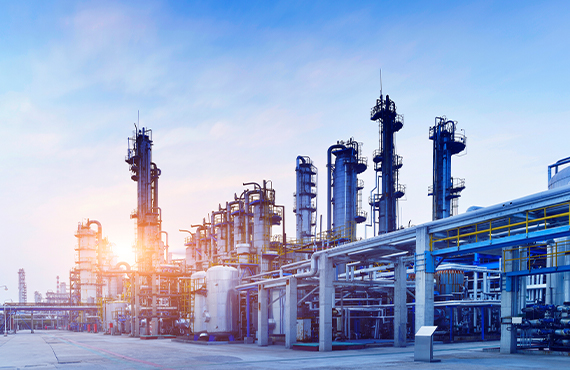

Refineries
Refineries
Food & Beverage
Food & Beverage

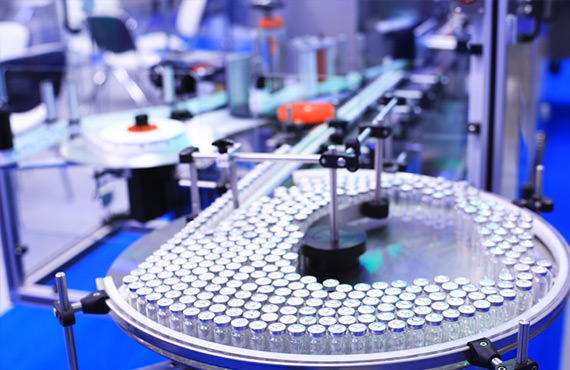

Pharmaceuticals
Pharmaceuticals
